FRENOX

Blast chilling & freezing

Cold storage, preparation counters and blast chilling

4 catalogue entries in this group. Explore the models below and discuss the configuration for your project.

MODEL SELECTION

Compare the details

Explore manufacturer technical data and available configurations. CAPRI will prepare a tailored equipment quotation for your project.

FRENOX / MODEL FAMILY

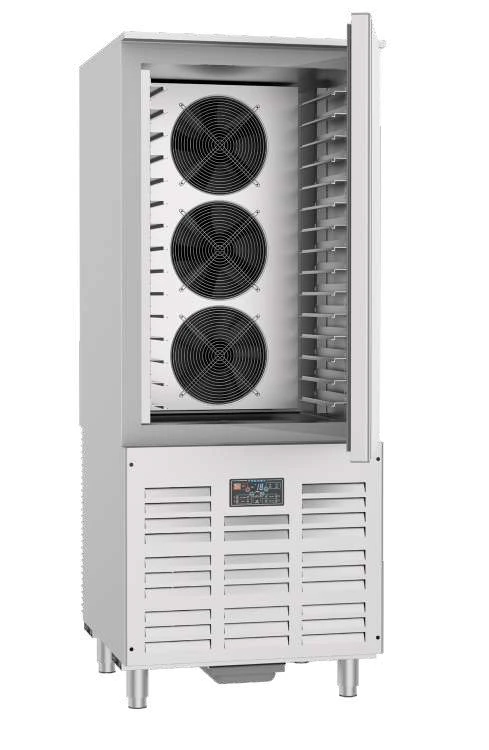

Blast Chiller

4 model options

Choose a model

FRENOX

VBL10-R290

Blast Chiller

Fan-assisted cooling. 1 Solid Self-Closing Door.

Capacity / configuration: 10 × GN 1/1 or 600 × 400 mm trays
Dimensions: 800 × 750 × 1410 mm

More specifications

Chilling temperature: +90/+3 °C
Freezing temperature: +90/-18 °C
Chilling capacity: 30 kg / 90 min
Freezing capacity: 25 kg / 270 min
Net weight: 201 kg
Material: AISI 304 stainless steel
Insulation thickness: 60 mm
Refrigerant: R290
Electrical supply: 220 V / 50 Hz / 1 Ph
Doors: 1
Maximum tray depth: 40 mm

Technical data ↗

Enquire about this model ↗Catalogue p. 222 ↗

FRENOX

VBL15-R290

Blast Chiller

Fan-assisted cooling. 1 Solid Self-Closing Door.

Capacity / configuration: 15 × GN 1/1 or 600 × 400 mm trays
Dimensions: 800 × 850 × 2010 mm

More specifications

Chilling temperature: +90/+3 °C
Freezing temperature: +90/-18 °C
Chilling capacity: 35 kg / 90 min
Freezing capacity: 30 kg / 270 min
Net weight: 263 kg
Material: AISI 304 stainless steel
Insulation thickness: 60 mm
Refrigerant: R290
Electrical supply: 220 V / 50 Hz / 1 Ph
Doors: 1
Maximum tray depth: 40 mm

Technical data ↗

Enquire about this model ↗Catalogue p. 223 ↗

FRENOX

VBL5

Blast Chiller

Stainless steel equipment for professional food-service operations.

Capacity / configuration: 5 × GN 1/1 or 600 × 400 mm trays
Dimensions: 800 × 750 × 850 mm

More specifications

Chilling temperature: +90/+3 °C
Freezing temperature: +90/-18 °C
Chilling capacity: 20 kg / 90 min
Freezing capacity: 15 kg / 270 min
Net weight: 161 kg
Material: AISI 304 stainless steel
Insulation thickness: 60 mm
Refrigerant: R290
Electrical supply: 220 V / 50 Hz / 1 Ph
Doors: 1
Maximum tray depth: 40 mm

Technical data ↗

Enquire about this model ↗Catalogue p. 224 ↗

FRENOX

VBL5-R290

Blast Chiller

Capacity / configuration: 5 × GN 1/1 or 600 × 400 mm trays
Dimensions: 800 × 750 × 850 mm

More specifications

Chilling temperature: +90/+3 °C
Freezing temperature: +90/-18 °C
Chilling capacity: 20 kg / 90 min
Freezing capacity: 15 kg / 270 min
Net weight: 161 kg
Material: AISI 304 stainless steel
Insulation thickness: 60 mm
Refrigerant: R290
Electrical supply: 220 V / 50 Hz / 1 Ph
Doors: 1
Maximum tray depth: 40 mm

Technical data ↗

Enquire about this model ↗Catalogue p. 225 ↗

Blast chilling & freezing

Compare the details

Blast Chiller

VBL10-R290

VBL15-R290

VBL5

VBL5-R290
